A-Pillar Speed Gauge or Head-Up Display? Where the Number Sits, and Where It Comes From, Matter More Than the Screen

The short answer

Both gadgets do the same job: they put your speed somewhere you can read it without dropping your eyes into the instrument cluster. Where they differ is where the number ends up, where it comes from, and what they cost you in view and glare.

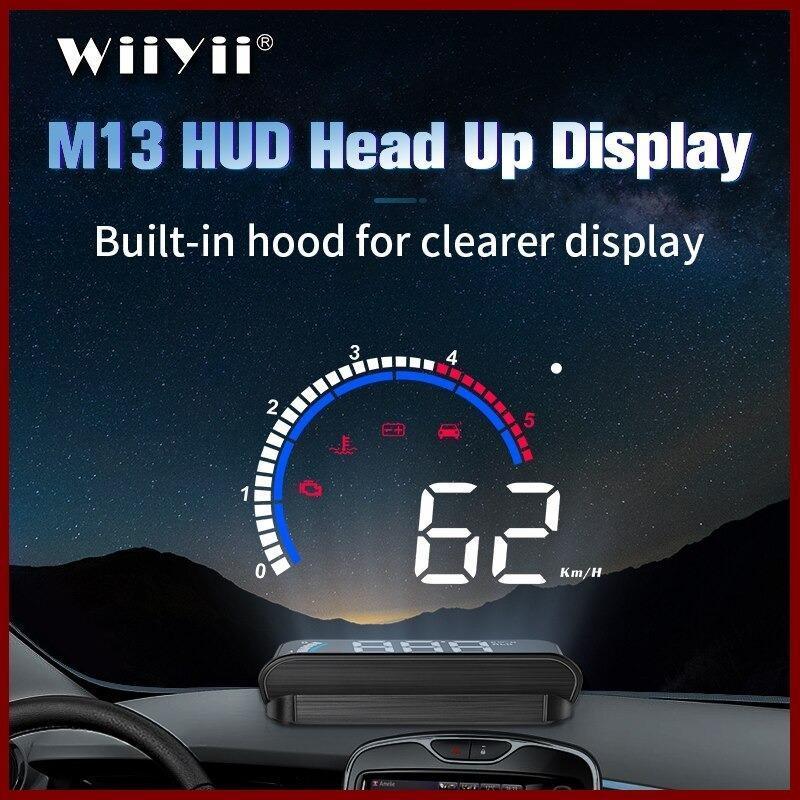

• A head-up display (HUD) puts the number closest to the road. That is the direction NHTSA’s guidance points, but an add-on HUD that projects onto the windshield needs a reflective film to avoid a ghost image, and it sits on top of the dash in your view.
• An A-pillar gauge is a small screen on the pillar trim beside the windshield. It keeps the windshield clear and adds enthusiast readouts such as RPM and voltage, but it is further from your line of sight, and the pillar is where many cars hide a curtain airbag.
• For the speed source, choose OBD-II if your car is on the device’s compatibility list, and GPS if it is not.

If you are shopping for a car anyway, a factory HUD beats both.

Check OBD-II head-up displays on Amazon

Why pillar speed meters went viral, translated into a buying decision

The pitch is easy to film: a crisp digital speed readout glowing on the pillar, like a race car. It promises two things at once, keeping your eyes up and making the cabin look custom, and the second one is doing a lot of the selling.

For a buyer, the useful questions are duller. Where does the number come from? Where does the unit sit relative to the road you need to see? What happens at night, in sunglasses, and in a tunnel? And does the mounting spot collide with an airbag or your state’s windshield law?

The four kinds of speed display, side by side

KUOWEIHUD lists the GPS-based K1 at about $16 on its official store at the time of writing (October 2026); check the current price. Several pillar gauges share the same “P8” model name across brands, which suggests many are the same device under different labels.

GPS or OBD-II: where the number comes from

OBD-II reads the car. An OBD-II display plugs into the diagnostic port under the dash and shows the speed your car’s computer reports. The California Air Resources Board says US EPA requires all 1996 and newer passenger cars and trucks to meet OBD requirements. The devices are pickier than the law, though. The wiiyii P8 listing says its OBD mode works on most 2008 and newer cars; the Geloo A401 listing says most vehicles after 2012; KUOWEIHUD’s F3 gauge is not compatible with diesel, electric or hybrid vehicles or 24V trucks; and one P8 listing excludes Dodge, Jeep and Chrysler models. Pyle’s manual says to check for an “OBDII CERTIFIED” label and that its HUDs do not support older OBD-I systems.

Because it reads speed from the car’s own sensors, an OBD-II display inherits some of their quirks. HUDWAY, a HUD maker, says in its own explainer that the sensor data reaching the car’s computer can be off by around 5 percent and that changing from the default tire size makes the OBD speed data inaccurate. The same explainer says speedometers themselves are set to read higher than true speed under UN vehicle regulations.

GPS reads the sky. A GPS unit needs only power, so it works on cars the OBD units exclude, including EVs and older vehicles. HUDWAY’s explainer says that with a good signal GPS speed is typically more accurate than the car’s speedometer; the trade-offs are about the signal. GPS.gov says GPS-enabled smartphones are typically accurate to within 16 feet (4.9 m) under open sky for position, and that accuracy worsens near buildings, bridges and trees. KUOWEIHUD warns that the signal may be lost in tunnels or underground garages. Startup is slower too: the wiiyii P8 listing says GPS can take “perhaps half a mile” to lock on before speed appears.

Power. Pyle’s manual says its OBD HUD switches on and off with the car to protect the battery, and its troubleshooting section covers cars with start-stop systems where the HUD does not switch off automatically, with a menu setting to fix it. If yours does not shut off with the car, unplug it when the car sits for days.

Check GPS head-up display speedometers on Amazon

Glare, ghosting and the reflective film

A windshield is laminated: two sheets of glass with a plastic layer between them. Project a number onto it and you get two reflections, one from each surface. Pyle’s manual says this outright, “the windscreen is double, which will make double reflection,” and tells you to apply the included film if you see a double image. KUOWEIHUD’s FAQ says a ghost image is normal without the film.

Factory HUDs fix this inside the glass. Kuraray describes its Trosifol wedge interlayer as acting as a combiner that overlaps the two reflections to create a HUD image without ghosting, and Eastman markets a wedge PVB HUD interlayer for laminated glass. An add-on HUD cannot change your glass, so the film is the workaround.

Two cautions follow. First, polarized sunglasses: Mazda’s CX-90 manual says polarized lenses reduce the visibility of its HUD, and NHTSA’s human factors design guidance says a HUD should be adjustable so drivers wearing polarized sunglasses can see the information clearly. Second, the law. Minnesota Statutes 169.71 bars driving when the windshield is “covered by, or treated with any material which has the effect of making the windshield more reflective,” while exempting unmodified original glazing. A HUD film is made to make part of the glass more reflective, and California Vehicle Code 26708 separately bars any object or material applied upon the windshield outside its listed exceptions, so read your own state’s windshield rules before applying one.

Where it sits: your view out, the airbag, and the law

Closer to the road is the point, within limits. NHTSA’s 2013 Visual-Manual Driver Distraction Guidelines, voluntary guidelines written for factory-installed devices, ask that each device’s active display be “located as close as practicable to the driver’s forward line of sight,” and set test criteria around single glances of 2 seconds and 12 seconds of total eyes-off-road time per task. NHTSA’s design guidance for HUDs adds the other half. It describes HUDs as a place for simple indications of critical safety situations, says HUD images should not block the driver’s view of forward hazards, places the HUD about 5 degrees below and 5 degrees to the right of the driver’s center line of view, and says both continuously presented stable-value information and indicators that continuously change in value should be kept to a minimum. Even a speed readout is a continuously changing number, so the less a HUD shows beyond it, the better. A cluster of RPM, voltage and boost readouts in your sightline is the opposite of what that guidance describes.

The pillar is a blind spot and an airbag housing. A pillar gauge keeps the windshield clear but sits in a pillar that already blocks part of your view at intersections. Mazda’s CX-90 manual says its curtain airbags are stored in the front pillars and that removing parts on the window pillars that contain airbag parts or sensors is dangerous. None of the pillar gauge listings we checked mentioned airbags. Use the adhesive-mount type on the lower trim, away from any SRS AIRBAG marking, rather than a replacement pillar pod. We cover the airbag side of viral car gadgets in more depth in our guide to car gadgets to avoid.

State law is about the view, not the gadget. We could confirm these from the statute text:

• California, Vehicle Code 26708, prohibits driving with any object placed “in or upon the vehicle” that obstructs or reduces the driver’s clear view through the windshield. That reaches a box on the dash, not only things stuck to the glass. A separate clause bars any object or material placed or applied upon the windshield itself, with listed exceptions such as small squares in the lower corners and a portable GPS used for navigation; we found no exception for a HUD reflective film.
• Minnesota, 169.71 subdivision 1, bars objects suspended between the driver and the windshield, with exceptions that include GPS or navigation systems mounted near the bottom of the windshield.
• Texas, Transportation Code 547.613, bars objects placed on or attached to the windshield that obstruct or reduce the driver’s clear view.
• New York, VTL 375(30), covers objects placed or hung in or upon the vehicle that obstruct the view through the windshield.

Other states word this differently, so check yours. The safe placement is the same everywhere: low, out of the windshield frame, and not in front of an airbag panel.

Why it matters. NHTSA counts 3,208 people killed in crashes involving distracted drivers in 2024, and says that reading or sending a text takes your eyes off the road for 5 seconds, which at 55 mph is like driving the length of a football field with your eyes closed. A speed display only helps if it takes less of your attention than the cluster it replaces.

The factory option

A factory HUD avoids most of the add-on trade-offs: the glass is made for it, the data is the car’s own, and nothing sits on the dash. Polarized sunglasses can still dim it, as Mazda’s manual notes. Honda lists a 6-inch head-up display as standard on the 2026 Accord Touring Hybrid, showing your speedometer, navigation directions and Honda Sensing status. Toyota lists a HUD as available on the 2026 Camry. Mazda’s CX-90 manual describes an Active Driving Display on some models that shows vehicle speed and can show recognized traffic signs, including speed limits. If you are choosing between trims, that is the version worth paying for.

Which should you buy?

• Your car is on the device’s OBD-II list. Buy an OBD-II display. It reads speed from the car’s own computer and starts showing speed without waiting for a satellite fix. A dash-mounted HUD with film puts the number closest to the road.
• Your car is an EV, hybrid, diesel or older model the listing excludes. Buy a GPS unit, and accept a short wait at startup and dropouts in tunnels. Whichever source you pick, a unit that projects onto the windshield needs a reflective film to avoid a ghost image.

Check HUD reflective films on Amazon

• You want RPM, voltage or boost readouts. That is what pillar gauges are for. Mount an adhesive unit low on the trim, clear of airbag markings and out of your view of the road, and set it to show only what you will actually use.

Check digital A-pillar gauges on Amazon

• You always drive in polarized sunglasses. Skip projection HUDs and choose a screen you look at directly, after checking it with your sunglasses on.
• You are buying a car this year. Prioritize a trim with a factory HUD.

Bottom line

A pillar speed gauge and a head-up display solve the same small problem, looking down at the cluster, in different ways. A HUD gets the number closest to the road but brings film, ghosting and polarized-lens problems with it. A pillar gauge keeps the glass clear but sits further from your sightline and near a curtain airbag. Pick the data source by compatibility, OBD-II when your car is listed and GPS when it is not, keep the unit low and out of the windshield frame, and remember that the best speed display is the one you need to glance at least. For more on screens that compete for your attention in the car, see our wireless CarPlay adapter guide.
